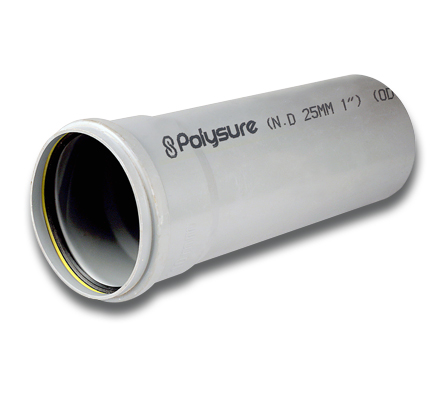

UPVC SWR Drainage Pipes & Fittings

Highlights of the Products:
  • SWR piping system cost less than that of the other alternatives
  • Smooth inner surface ensures high flow rates and no scaling, depositions or chocking
  • UV stabilized to ensure long life and suitable for outdoor application
  • Corrosion and rust proof which confirms longer durability of the product
  • Leak-proof and Ventilated, saves labour and time
  • Perfect solution for discharge of soil, waste and rainwater
  • Ventilation
  • Available in 2 variants - Ring fit and Solvent cement jointing
  • Fast and easy jointing
  • 100% leak - free joints
  • UV stabilised

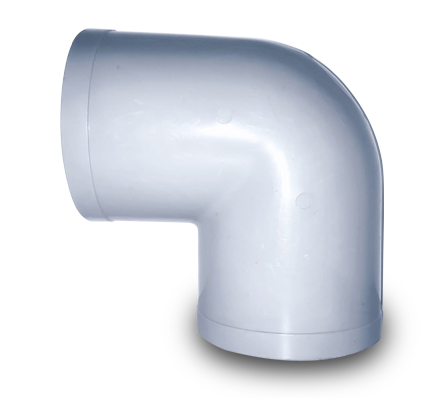

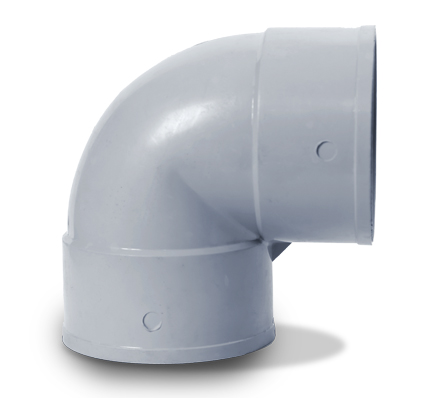

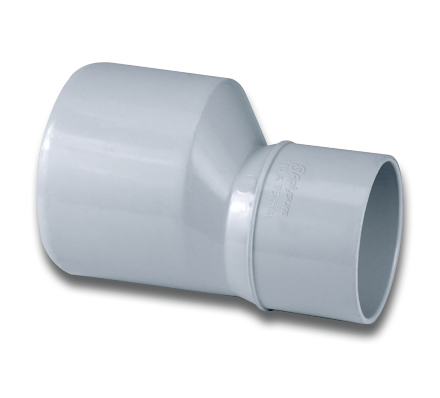

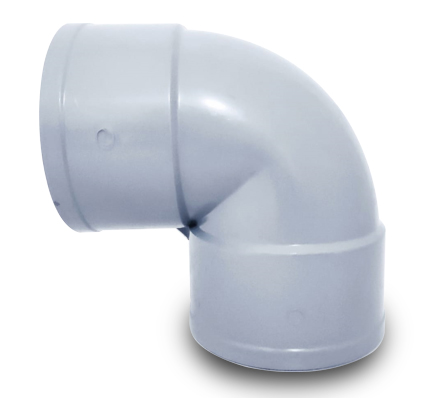

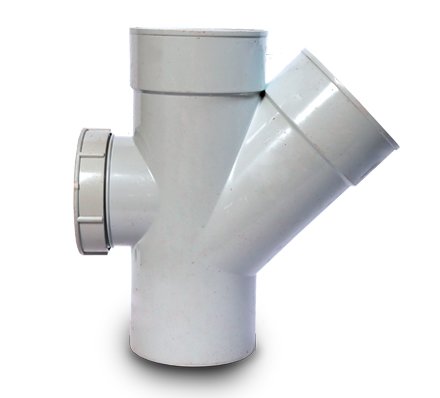

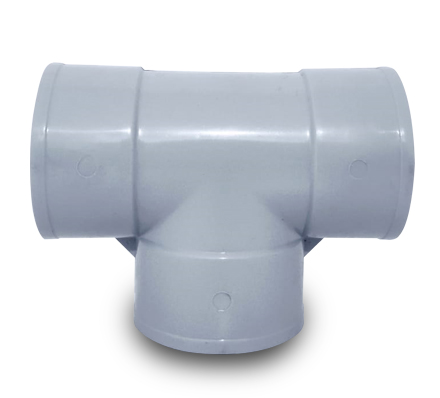

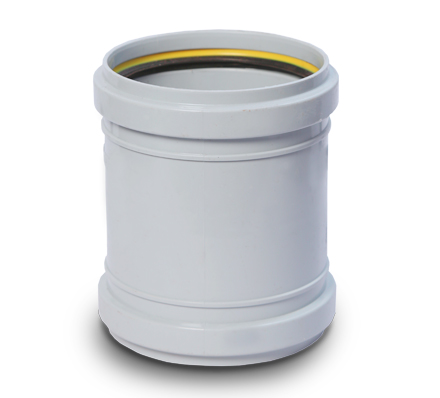

  • Wide range of fittings
  • Pipes manufactured as per IS:13592 and fittings as per IS:14735
Advantages of SWR Drainage Piping System
  • UV stabilised and 100% recyclable
  • Light weight - The low weight of the system makes it easy to install and reduces transportation, handling and installation costs
  • Smooth internal finish, no scale, no corrosion resulting in better flow rates
  • Complete SWR range of pipes and fittings - 75, 90, 110 and 160 mm
  • Accurate dimensions, ensuring perfect fit and leak free joints
  • Ring fit joint allows for thermal expansion and contraction of pipe
  • Unmatched strength and performance, high operating life
  • Fast installation
  • Cost-effective
Swipe to left or right to see the full table

DIMENSION CHARTS OF Upvc SWR PIPES AS PER IS-13592/2013
UPVC PIPES FOR SOIL, WASTE & RAIN WATER DISCHARGE SYSTEM INCLUDING VENTILATION
ALL DIMENSIONS ARE IN 'MM'

Nominal Outside Diameter Mean Out Side Diameter Outer Diameter of pipe at any Points Wall Thickness for Type-A Wall Thickness for Type-B
Min Max Min Max Min Max Min Max
40 40.00 40.30 39.50 40.50 1.80 2.20 3.20 3.80
50 50.00 50.30 49.40 50.60 1.80 2.20 3.20 3.80
63 63.00 63.30 62.2 63.80 1.80 2.20 3.20 3.80
75 75.00 75.30 74.10 75.90 1.80 2.20 3.20 3.80
90 90.00 90.30 88.9 91.20 1.90 2.30 3.20 3.80
110 110.00 110.40 108.60 111.40 2.20 2.70 3.20 3.80
125 125.00 125.40 123.50 126.50 2.50 3.00 3.20 3.80
140 140.00 140.50 138.30 141.70 2.90 3.40 3.60 4.20
160 160.00 160.50 158.00 162.00 3.20 3.80 4.00 4.60
